Palletflo :
Accessories | Brochure | Case Study | Design | Details | Photos | Racks | Specs | Summary | Video | Wheels



Kornylak Pioneered Palletflo® Wheels To Control Loads On Pallet Flow Racks

Note: All Palletflo wheels are available non-greased if specified.

Click on picture to enlarge click on 'Store' above or 'Order Online' to left to order



RPA1221 Palletflo Wheel. Click to enlarge
RPA 1221
RPA1259 Palletflo Wheel. Click to enlarge
RPA 1259
RPA1297 Palletflo Wheel. Click to enlarge
RPA 1297
Heavy duty bearing Energy absorbing tire
Standard 2 1/4" diameter; 5/16" bore; 9/16" wide tire.
Metric 57mm diameter; 7.9mm bore; 14.3mm wide tire.
Orange tires - 69-75 Shore A durometer - ambient temperature operations
Blue tires - 63-69 Shore A durometer - Cool room / refrigerator operations
Yellow tires - 84-90 Shore A durometer - pallet entry and pushback racks(non-energy absorbing)
Recommended max load = 80lbs, 36kg
Urethane thickness = 5/32" (.150 ) 4mm
RPA1221, RPA1259, RPA1297 - List price $1.80 EA.

RPA1631 Palletflo Wheel. Click to enlarge
RPA 1631
RPA1632 Palletflo Wheel. Click to enlarge
RPA 1632
RPA1655 Palletflo Wheel. Click to enlarge
RPA 1655
RPA2601 Palletflo Wheel. Click to enlarge
RPA 2601
Heavy duty bearing Energy absorbing tire
Standard 2 3/8" diameter; 5/16" bore; 9/16" wide tire.
Metric 60mm diameter; 7.9mm bore; 14.3mm wide tire.
Orange tires - 69-75 Shore A durometer - ambient temperature operations
Blue tires - 63-69 Shore A durometer - Cool room / refrigerator operations
Yellow tires - 84-90 Shore A durometer - pallet entry and pushback racks(non-energy absorbing)
Black tires - 52-58 Shore A durometer - Freezer room / freezer operations
Recommended max load = 80lbs. 36kg
Urethane thickness = 1/4" (.250 ) 6.3mm
RPA1631, RPA1632, RPA1655 - List price $2.07 EA.
RPA2601 - List price $2.60 EA.

RPA202 Palletflo Wheel. Click to enlarge
RPA 202
RPA713 Palletflo Wheel. Click to enlarge
RPA 713
RPA1633 Palletflo Wheel. Click to enlarge
RPA 1633
Heavy duty bearing.
RPA202 1 15/16" diameter; 5/16" bore; 9/16" wheel.
Metric 49mm diameter; 7.9mm bore; 14.3mm wheel.
RPA713 2 1/8" diameter; 5/16" bore; 5/8" steel wheel.
Metric 54mm diameter; 7.9mm bore; 16mm Steel wheel.
RPA1633 2 1/4" diameter; 5/16" bore; 5/8" steel wheel.
Metric 57mm diameter; 7.9mm bore; 16mm steel wheel.
Recommended max load = 125lbs. 57kg
RPA202 List price $0.95 EA. RPA713 List price $1.80 EA. RPA1633 List price $2.07 EA.

RPA2478 Palletflo Wheel. Click to enlarge
RPA 2478
RPA1259S Palletflo Wheel. Click to enlarge
RPA 1259S
RPA2534 Palletflo Wheel. Click to enlarge
RPA 2534
RPA202S Palletflo Wheel. Click to enlarge
RPA 202S
RPA2601S Palletflo Wheel. Click to enlarge
RPA 2601S
Stainless Steel Wheel with heavy duty bearing Energy absorbing tire
Standard 2 1/4" diameter; 5/16" bore; 9/16" wide tire.
Metric 57mm diameter; 7.9mm bore; 14.3mm wide tire.
Orange tires - 69-75 Shore A durometer - ambient temperature operations
Blue tires - 63-69 Shore A durometer - Cool room / refrigerator operations
Yellow tires - 84-90 Shore A durometer - pallet entry and pushback racks(non-energy absorbing)
Black tires - 52-58 Shore A durometer - Freezer room / freezer operations
Recommended max load = 80lbs, 36kg
Urethane thickness = 5/32" (.150 ) 4mm
RPA2478, RPA1259S, RPA2534 - List price $3.80 EA.
RPA202S - List price $2.80 EA. RPA2601S - List price $4.33EA.

RPA1631 Palletflo Wheel. Click to enlarge
RPA 1631S
RPA1632 Palletflo Wheel. Click to enlarge
RPA 1632S
RPA1655 Palletflo Wheel. Click to enlarge
RPA 1655S
Stainless Steel Wheel with heavy duty bearing Energy absorbing tire
Standard 2 3/8" diameter; 5/16" bore; 9/16" wide tire.
Metric 60mm diameter; 7.9mm bore; 14.3mm wide tire.
Orange tires - 69-75 Shore A durometer - ambient temperature operations
Blue tires - 63-69 Shore A durometer - Cool room / refrigerator operations
Yellow tires - 84-90 Shore A durometer - pallet entry and pushback racks(non-energy absorbing)
Recommended max load = 80lbs. 36kg
Urethane thickness = 1/4" (.250 ) 6.3mm
RPA1655S, RPA1632S, RPA1631S - List Price $4.07 EA.

RPA2573 Palletflo Wheel. Click to enlarge
RPA 2573
Heavy duty bearing.
Standard 2 7/16" diameter; 5/16" bore; 1.5" wide tire.
Metric 60mm diameter; 7.9mm bore; 38.1mm wide tire.
Orange tires - 83 Shore A durometer. Also available in Blue and Yellow
Recommended max load = 200lbs. 90.9kg
Urethane thickness = 7/32" (.215 ) 5.6mm
RPA2573 - List price $7.20 EA.

RPA2551 Palletflo Wheel. Click to enlarge
RPA 2551
Heavy duty bearing.
Standard 2 7/16" diameter; 5/16" bore; 3.75" wide tire.
Metric 60mm diameter; 7.9mm bore; 95.25mm wide tire.
Orange tires - 83 Shore A durometer. Also available in Blue and Yellow
Recommended max load = 200lbs. 90.9kg
Urethane thickness = 7/32" (.215 ) 5.6mm
RPA2551 - List price $14.40 EA.

RPA2349 Palletflo Wheel. Click to enlarge
RPA 2349
RPA2395 Palletflo Wheel. Click to enlarge
RPA 2395
RPA2394 Palletflo Wheel. Click to enlarge
RPA 2394
Heavy duty bearing.
Standard 2" diameter; 1/4" bore; 9/16" wide tire.
Metric 50mm diameter; 6.35mm bore; 12.7mm wheel.
Orange tires - 69-75 Shore A durometer - ambient temperature operations
Blue tires - 63-69 Shore A durometer - Cool room / refrigerator operations
Yellow tires - 84-90 Shore A durometer - pallet entry and pushback racks
Recommended max load = 100lbs. 45kg
Urethane thickness = 5/32" (.150 ) 4mm
RPA2349, RPA2395, RPA2394 - List price $3.90 EA.

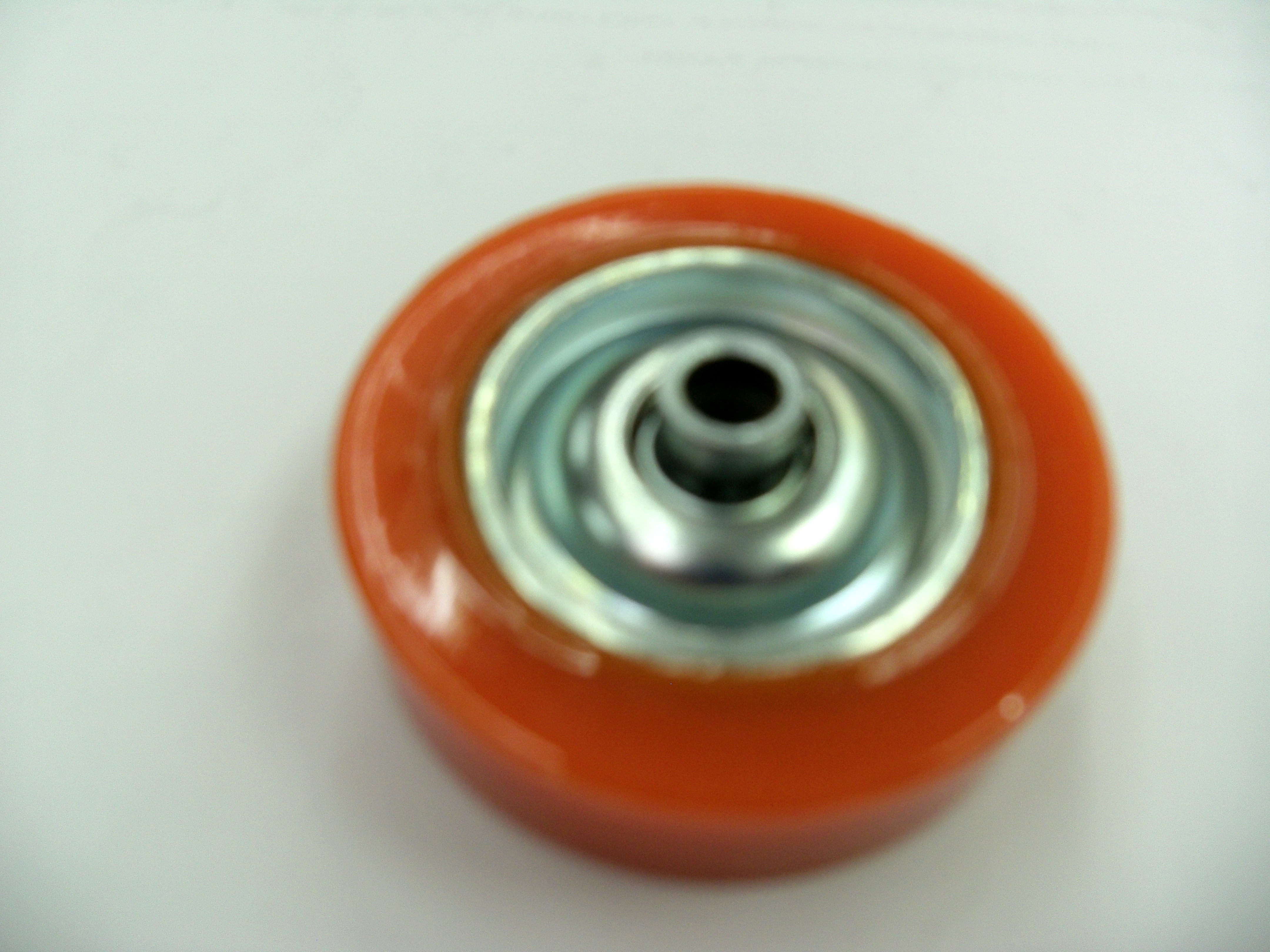

RPA2637 Palletflo Wheel. Click to enlarge
RPA 2528
RPA2637 Palletflo Wheel. Click to enlarge
RPA2637
RPA2393 Palletflo Wheel. Click to enlarge
RPA 2393
Light weight bearing.
Standard 2 1/4" diameter; 1/4" bore; 9/16" wide tire.
Metric 57mm diameter; 6.35mm bore; 12.7mm wheel.
Orange tires - 69-75 Shore A durometer - ambient temperature operations
Blue tires - 63-69 Shore A durometer - Cool room / refrigerator operations
Yellow tires - 84-90 Shore A durometer - pallet entry and pushback racks
Recommended max load = 40lbs. 18kg
Urethane thickness = 5/32" (.150 ) 4mm
RPA2528, RPA2637(Call Sales for availability), RPA2393 - List price $2.70 EA.

RPA201 Palletflo Wheel. Click to enlarge
RPA201
RPA201
Frantz 6150 wheel
Heavy duty, double race bearing
Standard 1 15/16" diameter; 5/16" bore; 9/16" wheel.
Metric 49.7mm diameter; 7.9mm bore; 14.3mm wide tire.
Recommended max load = 120 lbs. 54kg
RPA201 - Special price $2.50 EA.
RPA523 Palletflo Wheel. Click to enlarge
RPA523
RPA523
INAF 52427
Heavy duty, double race bearing
Standard 1 15/16" diameter; 5/16" bore; 9/16" wheel.
Metric 49.7mm diameter; 7.9mm bore; 14.3mm wide tire.
Recommended max load = 100 lbs. 45kg
RPA523 - Special price $1.50 EA.
HGB154 Rollerslo
HGB154
Rollerslo®
A Roller Retarder For Roller Conveyors
Rollerslo® is designed to clamp to the bottom of the
rail between two rollers and act as a controller.

HGB154 - List price $25.00 EA.
RXC141 Rollerslo
RXC141
Rollerslo®
A Heavy Duty Roller Retarder For Roller Conveyors
Rollerslo® is designed to clamp to the bottom of the
rail between two rollers and act as a controller.

RXC141 - List price $55.00 EA.

Kornylak pioneered Palletflo® wheels for the use on controlled gravity live storage systems. The patented hysteresis Palletflo® wheels are used to control the flow of pallets on pallet flow racks. Palletflo® wheels are also used in other material handling applications.

Note: All Palletflo wheels are available non-greased if specified.
