Kornylak's Palletflo® Gravity Flow wheel Specifications

Dimensions For RPA1221, RPA1259, RPA1297
Diameter:
Bore:
Tire width:
Length through bore:
Urethane thickness:
Recommended maximum load

 2-1/4"
5/16"
9/16"
7/8"
5/32"
80 lbs.

 57mm
7.9mm
14.3mm
22.2mm
4mm
36kg		 Picture of Palletflo model RPA1221
Dimensions For RPA1631, RPA1632, RPA1655, RPA2601
Diameter:
Bore:
Tire width:
Length through bore:
Urethane thickness:
Recommended maximum load

 2-3/8"
5/16"
9/16"
7/8"
1/4"
80 lbs.

 60mm
7.9mm
14.3mm
22.2mm
6.35mm
36kg		 Picture of Palletflo model RPA1632
Dimensions For RPA2332, RPA2334, RPA2340
Diameter:
Bore:
Tire width:
Length through bore:
Urethane thickness:
Recommended maximum load

 2-3/8"
5/16" or 7/16"
1-1/2"
1.687"
7/32"
200 lbs.

 60mm
7.9mm or 11.1mm
38.1mm
42.9mm
5.6mm
90.9kg		 Picture of Palletflo model RPA2340
Dimensions For RPA2331, RPA2333, RPA2343
Diameter:
Bore:
Tire width:
Length through bore:
Urethane thickness:
Recommended maximum load

 2-3/8"
5/16" or 7/16"
3.625"
3.925"
7/32"
200 lbs.

 60mm
7.9mm or 11.1mm
92mm
99.7mm
5.6mm
90.9kg		 Picture of Palletflo model RPA2331
Dimensions For RPA2349
Diameter:
Bore:
Tire width:
Length through bore:
Urethane thickness:
Recommended maximum load

 2"
1/4"
9/16"
7/8"
5/32"
40 lbs.

 50.8mm
6.35mm
12.7mm
22.2mm
4mm
18kg		 Picture of Palletflo model RPA2349
Dimensions For RPA202 Steel Wheel
Diameter:
Bore:
Width:
Length through bore:
Recommended maximum load

 1-15/16"
5/16"
9/16"
7/8"
125 lbs.

 49mm
7.9mm
14.3mm
22.2mm
57kg		 Picture of Palletflo model RPA202
Dimensions For RPA713 Steel Wheel
Diameter:
Bore:
Tire width:
Length through bore:
Recommended maximum load

 2-1/8"
5/16"
5/8"
7/8"
125 lbs.

 54mm
7.9mm
16mm
22.2mm
57kg		 Picture of Palletflo model RPA713
Dimensions For RPA1633 Steel Wheel
Diameter:
Bore:
Tire width:
Length through bore:
Recommended maximum load

 2-1/4"
5/16"
5/8"
7/8"
125 lbs.

 57mm
7.9mm
16mm
22.2mm
57kg		 Picture of Palletflo model RPA1633


Rail Dimensions And Specifications
For any length rail
Our standard lengths are 8', 10', 12' or 2438mm, 2540mm, 3658mm

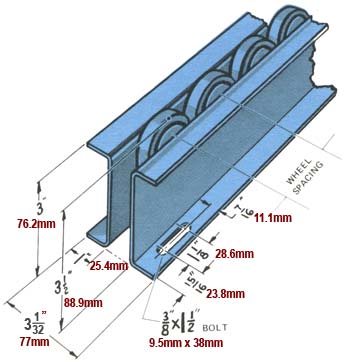

Single Row Series Single Row Series

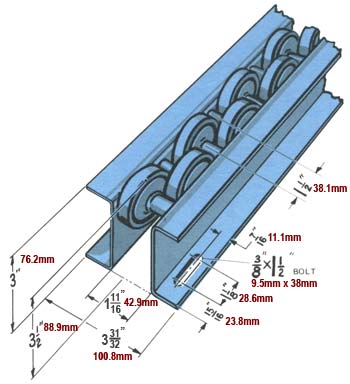

Double Row Series Double Row Series
Two Basic Load Capacities

Regular Service Rails are constructed of 12 gage steel channel and designed to handle loads up to 410 pounds per pallet foot per rail.

Heavy Duty Rails are constructed of 10 gage steel channel and designed to handle loads up to 620 pounds per pallet foot of reail.

Rail Coatings
Our standard rails come powder coated in Kornylak blue. We also make galvanized rails as well.
