Specifications For The Lightweight Belt Conveyor Zipflo®

Series ZHX
Maximum length: 150 foot, straight, with supports on 5-foot centers
Single hanger load limit: 30 lbs., depending on spacing
(see chart for optimum load/spacing relationship)
Maximum vertical curve: 20 degrees
Speed: 60 or 90 fpm standard, speeds from 12 fpm to 500 fpm optional, variable speeds optional
Drive: 1/2 hp, various voltages and user specified

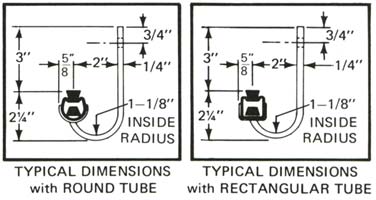

Series ZHX Zipflo Dimensions

Series ZFX
Maximum length: 150 foot, straight, with supports on 5-foot centers
Load limits: 100 lbs. maximum in any lineal foot
1,000 lbs. total when used for accumulating
3,000 lbs. total when used for moving
Maximum vertical curve: 7 1/2 degrees
Speed: 60 or 90 fpm standard, speeds from 12 fpm to 500 fpm optional, variable speeds optional
Drive: 1/2 hp, various voltages and user specified

Series ZNX Zipflo Dimensions

Series ZNX
Maximum length: 150 foot, straight, with supports on 5-foot centers
Load limits: 50 lbs. maximum in any lineal foot. 1,500 lbs. total
Maximum vertical curve: 20 degrees
Speed: 60 or 90 fpm standard, speeds from 12 fpm to 500 fpm optional, variable speeds optional
Drive: 1/2 hp, various voltages and user specified

Typical Dimensions for a Series ZTX

Typical Dimensions for a Series ZSX

Typical Dimensions for a Series ZMX
