Heavy-Duty, Multidirectional Conveyor wheels Transdisc®

Specifications for the heavy-duty, multidirectional conveyor wheel Transdisc® that is light weight, has a low profile, easily mounted, has low friction, and is corrosion-resistant.



Capacity Height Diameter Weight Axles Bolt Holes Base Disc Rolls	200 lbs. 3.375" 6.5" 1.5 lbs. Stainless Steel for 3/8" dia. Glass/Nylon Glass/Nylon Nylon	90.72kg 86mm 165mm .68kg 9.53mm

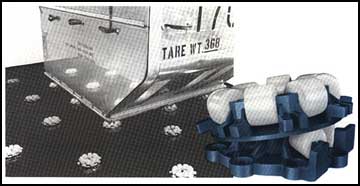

Floor mounted Transdiscs provide ample walking space for push conveying of a 747 baggage container. Transdisc® multi directional conveying wheels are ideal device for rotation, transfer, conveying, and accurately positioning of very heavy loads of aircraft cargo, baggage containers, and airfreight.

Transdisc® multi directional conveying wheels are ideal device for rotation, transfer, conveying, and accurately positioning of very heavy loads of aircraft cargo, baggage containers, and airfreight.

The low friction multi-directional capability of Transdisc® allows easy positioning and turning of the container.

Self-cleaning Transdiscs are far better than a ball caster for all-directional movement and rotation of heavy loads.

Model FX204 Transdisc® is light weight, has a low profile, easily mounted, has low friction, and is corrosion-resistant.
