Dimensions and Specifications For High Strength, Plastic Pallet Flow Wheel

Dimensions

Pallet Flow Wheel
Outside Diameter:
I.D. Plane Bore:
Width of Wheel:
Width of Wheel at Hub:
Load Rating:
Material: 		 Standard
2 13/16
3/8
1 1/8
1 7/16
300 lbs
High Strength Plastic

 Metric
71.4mm
9.5mm
28.5mm
36.5mm
136 kg.

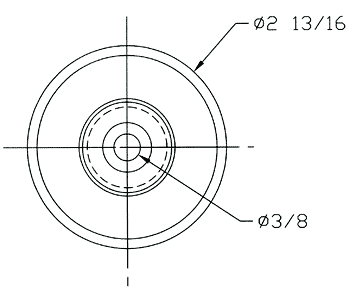

Cutaway view of Pallet Flow Wheel   Side view with dimensions of Pallet Flow Wheel


The Pallet Flow wheels are used on rails having mechanical brakes, and are effective on FIFO storage racks in high density warehouses. These Pallet Flow wheels are made from high strength plastic and have an exceptional load rating.
