Specifications For Kornylak's Mini-Wheel®, A Lightweight Conveyor Wheel System

Mini-Rail Features
Extruded aluminum track. Single-row track has two flanges for easy interlocking of adjacent conveyor rails.

Tracks can be easily drilled for mounting to suit installation conditions.

Minimum longitudinal wheel spacing is 1 1/8", 28.5mm center-to-center. Minimum track spacing: 1 3/8", 34.925mm center-to-center.

Wheel spacing can be varied by the addition of snap-in spacers. The use of spacers is recommended on all wheel spacing larger than 1 1/8", 28.5mm centers, to insure that proper spacing will be maintained.

Specifications & Dimensions

White Wheel Dimensions
	White Wheel Diameter Wheel width Axle width Axle diameter	1.000 inches 0.560 inches 0.855 inches 0.095 inches	25.4mm 14.2mm 21.7mm 2.4mm
Red Wheel Dimensions
	Red Wheel Diameter Wheel width Axle width Axle diameter	1.000 inches 0.500 inches 0.855 inches 0.095 inches	25.4mm 12.7mm 21.7mm 2.4mm
	Bracket Width Height Length	0.930 inches 0.775 inches 1.118 inches	23.6mm 19.7mm 28.4mm
	Rail Width Height Length	1.514 inches 0.812 inches 10.00 feet Or cut to size	38.4mm 20.6mm 3048mm

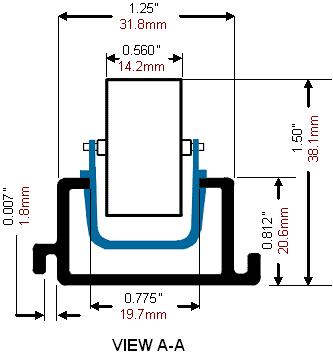

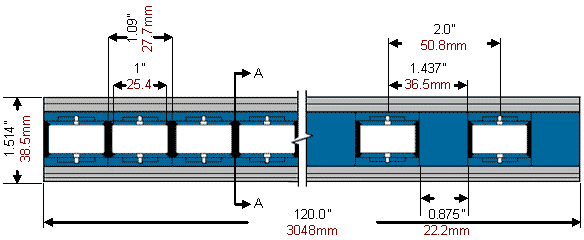

Single Mini-Rail Assembly

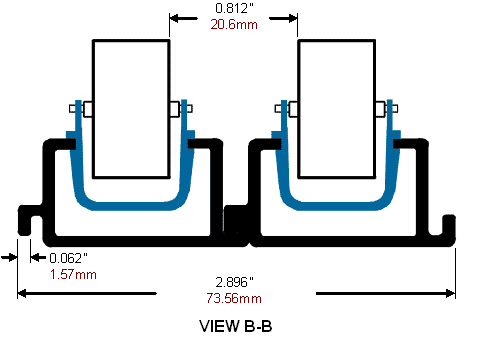

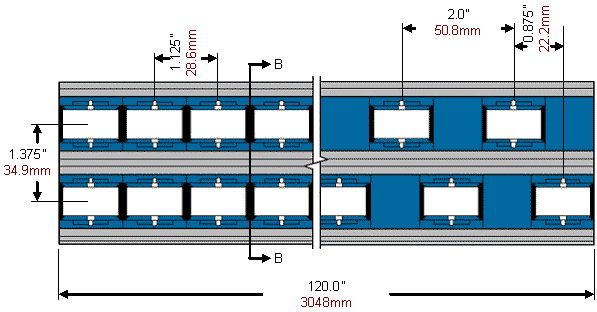

Interlocking Mini-Rail Assembly
