Supersections Are Gravity Conveyors Using Superwheel® As The Skatewheel

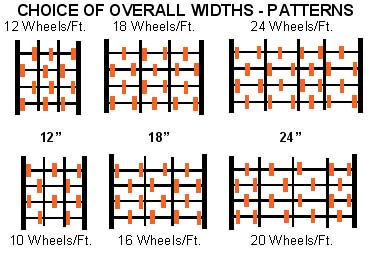

The Supersections are gravity conveyors that use the low friction, all-plastic Superwheel as the skatewheels. These gravity conveyor sections are made from steel or aluminum and may be bolted to stands, racks or other types of equipment. The stands come in three widths: 12", 18", and 24". Also, there is a choice of 2 wheel patterns per width: 10 or 12 wheels per foot, 16 or 18 wheels per foot, and 20 and 24 wheels per foot respectfully.
Each conveyor section bolts to the stand. The stands are adjustable vertically and angularly. The stands are available to match the conveyor widths of 12", 18", and 24".
Supersection Features
- Completely bolted construction.
- Formed 10 gage steel or aluminum channel.
- Accurately aligned 1/4" diameter steel axles.
- Aluminum spacers.
- Stringers and cross braces of 10 gage aluminum.
- Self-locking nuts assure positive assembly.
- Individual Superwheel - 25# per wheel.
- Aluminum Frame Supersection
(distributed load, supports on 10’ centers) - 500#.
